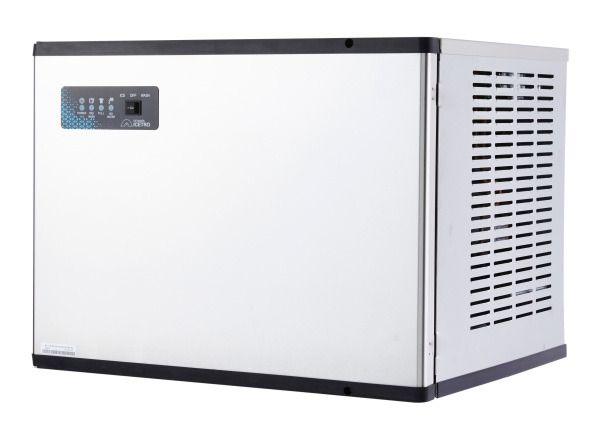

Modular Ice Machine, Full Cube, Remote-Cooled, 1100 Lbs., 30-Inch Width, 208-230V

IM-1100-RC

Icetro Maestro Modular Ice Maker, cube-style, 30″W, air-cooled, remote condenser, production capacity up to 1081 lbs/24 hr at 70°/50° (949 lbs at 90°/70°), diagnostic control panel, auto cleaning cycle, ABS antimicrobial interior, 304 stainless steel exterior, full-size cubes, 208-230v/60/1-ph, CE, cETLus, ETL-Sanitation

Features

Remote-cooled, 30" wide modular unit, full cube
Up to 1,081 lbs production capacity (70F/50F, 24 Hours)
304 stainless steel exterior (durable & rust resistant)
3-way ventilation for maximum efficiency and flexibility
Simple diagnostic panel to assist service & maintenance
Cleanable parts can be removed by hand
Hinged front doors for easy access
Air filter attached magnetically for easy removal
ABS antimicrobial interior to reduce bio-growth & cleaning cost
220V/60Hz/1ph

GET A QUOTE A Middleby Company

Request Service or Parts SPEC SHEETS

Specifications

Ice Type: Cube
Condenser Type: Air - Remote
Dimensions: 30" width x 30.30" height x 24.80" depth
Product Weight, Ship Weight: 221lbs, 254lbs
Electrical: 208-230V/60Hz/1PH

Filtration

Icetro America always recommends using a dedicated filtration system for its ice machines. However, using the IcePro filter with Citryne™ and registering at icetrowaterproducts.com/registration will add one (1) year of warranty coverage.

Warranty

3 Years Parts and Labor

5 Years Evaporator Parts and Labor; 5 Years Compressor Parts Only

REGISTER YOUR PRODUCT

Resources

Part No.	Description	Models
203001400	BAND HOSE 40	IM-1700 IM-1700-WH Modular Ice Machine, Half Cube, Water-Cooled, 1700 Lbs., 48-Inch Width IM-1700-RH Modular Ice Machine, Half Cube, Remote-Cooled, 1700 Lbs., 48-Inch Width IM-1700-WC Modular Ice Machine, Full Cube, Water-Cooled, 1700 Lbs., 48-Inch Width IM-1700-RC Modular Ice Machine, Full Cube, Remote-Cooled, 1700 Lbs., 48-Inch Width IM-1700-AH Modular Ice Machine, Half Cube, Air-Cooled, 1700 Lbs., 48-Inch Width IM-1700-AC Modular Ice Machine, Full Cube, Air-Cooled, 1700 Lbs., 48-Inch Width IM-2000 IM-2000-WH Modular Ice Machine, Half Cube, Water-Cooled, 2000 Lbs., 48-Inch Width IM-2000-RH Modular Ice Machine, Half Cube, Remote-Cooled, 2000 Lbs., 48-Inch Width IM-2000-WC Modular Ice Machine, Full Cube, Water-Cooled, 2000 Lbs., 48-Inch Width IM-2000-RC Modular Ice Machine, Full Cube, Remote-Cooled, 2000 Lbs., 48-Inch Width IM-2000-AH Modular Ice Machine, Half Cube, Air-Cooled, 2000 Lbs., 48-Inch Width IM-2000-AC Modular Ice Machine, Full Cube, Air-Cooled, 2000 Lbs., 48-Inch Width IM-0350 IM-0350-AH-22 Modular Ice Machine, Half Cube, Air-Cooled, 350 Lbs, 22-Inch Width IM-0350-AH Modular Ice Machine, Half Cube, Air-Cooled, 350 Lbs., 30-Inch Width IM-0350-AC Modular Ice Machine, Full Cube, Air-Cooled, 350 Lbs., 30-Inch Width IM-0350-AC-22 Modular Ice Machine, Full Cube, Air-Cooled, 350 Lbs., 22-Inch Width IM-0350-22IM-0460 IM-0460-WC Modular Ice Machine, Full Cube, Water-Cooled, 460 Lbs., 30-Inch Width IM-0460-WH Modular Ice Machine, Half Cube, Water-Cooled, 460 Lbs., 30-Inch Width IM-0460-AH-22 Modular Ice Machine, Half Cube, Air-Cooled, 460 Lbs., 22-Inch Width IM-0460-AH Modular Ice Machine, Half Cube, Air-Cooled, 460 Lbs., 30-Inch Width IM-0460-AC Modular Ice Machine, Full Cube, Air-Cooled, 460 Lbs, 30-Inch Width IM-0460-AC-22 Modular Ice Machine, Full Cube, Air-Cooled, 460 Lbs, 22-Inch Width IM-0460-22IM-0550 IM-0550-WH Modular Ice Machine, Half Cube, Water-Cooled, 550 Lbs., 30-Inch Width IM-0550-AH-22 Modular Ice Machine, Half Cube, Air-Cooled, 550 Lbs., 22-Inch Width IM-0550-AH Modular Ice Machine, Half Cuber, Air-Cooled, 550 Lbs., 30-Inch Width IM-0550-WC Modular Ice Machine, Half Cube, Water-Cooled, 550 Lbs., 30-Inch Width IM-0550-AC-22 Modular Ice Machine, Full Cube, Air-Cooled, 550 Lbs., 22-Inch Width IM-0550-AC Modular Ice Machine, Full Cube, Air-Cooled, 550 Lbs., 30-Inch Width IM-0550-22IM-0750 IM-0750-AC Modular Ice Machine, Full Cube, Air-Cooled, 750 Lbs., 30-Inch Width, 220V IM-0750-AH Modular Ice Machine, Half Cube, Air-Cooled, 750 Lbs., 30-Inch Width, 220V IM-1100 IM-1100-WH Modular Ice Machine, Half Cube, Water-Cooled, 1100 Lbs., 30-Inch Width, 208-230V IM-1100-WC Modular Ice Machine, Full Cube, Water-Cooled, 1100 Lbs., 30-Inch Width, 208-230V IM-1100-RH Modular Ice Machine, Half Cube, Remote-Cooled, 1100 Lbs., 30-Inch Width, 208-230V IM-1100-RC Modular Ice Machine, Full Cube, Remote-Cooled, 1100 Lbs., 30-Inch Width, 208-230V IM-1100-AC Modular Ice Machine, Full Cube, Air-Cooled, 1100 Lbs., 30-Inch Width, 208-230V IM-1100-AH Modular Ice Machine, Half Cube, Air-Cooled, 1100 Lbs., 30-Inch Width, 208-230V WC-0070 WC-0070-AB DISCONTINUED \| Undercounter Ice Machine Cuber, 70 Lbs. – 60Hz, 115V	Add to list Remove
203003200	BAND SPRING 17	ID-0300 ID-0300-AN Nugget Ice And Water Dispenser, 300 lbs., 11 lbs. Storage ID-0450 ID-0450-AN Nugget Ice And Water Dispenser, 450 lbs., 30 lbs. Storage IM-1700 IM-2000 IM-0770 IM-0770-AN Modular Ice Machine, Nugget Ice, Air-Cooled, 770 Lbs., 22-Inch Width IM-0770-AF Modular Ice Machine, Flake Ice, Air-Cooled, 770 Lbs., 22-Inch Width IM-1100 ID-0160 ID-0160-AN Nugget Ice And Water Dispenser, 150 lbs., 5.3 lbs. Storage IS-0700-AS IS-0700-AS Snow Ice, Freestanding, Air-Cooled, 700 Lbs – 60Hz, 208-230V	Add to list Remove
203003300	BAND SPRING 21	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 ID-0160 IU-0090 IU-0090-ANP Undercounter Ice Machine, Nugget Ice, 90 Lbs., 24.3 Lbs. Storage IU-0090-AN Undercounter Ice Machine, Nugget Ice, 90 Lbs., 24.3 Lbs. Storage WM-1100 WM-1100-AC DISCONTINUED \| Modular Ice Machine Cuber, Air-Cooled, 1100 Lbs – 60Hz, 115V WM-1100-WH DISCONTINUED \| Modular Ice Machine, Half Cuber, Water-Cooled, 1100 Lbs – 60Hz, 115V WM-1100-WC DISCONTINUED \| Modular Ice Machine Cuber, Water-Cooled, 1100 Lbs – 60Hz, 115V	Add to list Remove
203004200	BAND SPRING 20	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 ID-0160 IU-0090	Add to list Remove
210804501	THUMB SCREW	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 WC-0070 ID-H150 ID-H150-22 Hotel Cube Dispenser, 150 lbs. Storage, 22-Inch Width ID-H250 ID-H250-30 Hotel Cube Dispenser, 250 lbs. Storage, 30-Inch Width WU-0100 WU-0100-AC Undercounter Ice Machine, Full Cube, Air-Cooled, 105 Lbs, 27 Lbs Storage IU-0070 IU-0070-AG Undercounter Ice Machine, Gourmet Cube, 55 Lbs., 26 Lbs. Storage IU-0070-OU Undercounter Ice Machine, Gourmet Cube, 70 Lbs., 26 Lbs. Storage IU-0090 WM-0460 WM-0460-WC-22 DISCONTINUED \| Modular Ice Machine, Full Cuber, Water-Cooled, 460 Lbs, 22-Inch – 60Hz, 115V WM-0460-AH-22 DISCONTINUED \| Modular Ice Machine, Full Cuber, Air-Cooled, 460 Lbs, 22-Inch – 60Hz, 115V WM-0460-AH DISCONTINUED \| Modular Ice Machine, Full Cuber, Air-Cooled, 460 Lbs – 60Hz, 115V WM-0460-AC-22 DISCONTINUED \| Modular Ice Machine, Full Cuber, Air-Cooled, 460 Lbs, 22-Inch – 60Hz, 115V WM-0460-AC DISCONTINUED \| Modular Ice Machine, Full Cuber, Air-Cooled, 460 Lbs – 60Hz, 115V WM-0460-22WM-0680 WM-0680-WH DISCONTINUED \| Modular Ice Machine, Full Cuber, Water-Cooled, 680 Lbs – 60Hz, 115V WM-0680-WC DISCONTINUED \| Modular Ice Machine, Full Cuber, Water-Cooled, 680 Lbs – 60Hz, 115V WM-0680-AH DISCONTINUED \| Modular Ice Machine, Full Cuber, Air-Cooled, 680 Lbs – 60Hz, 115V WM-0680-AC DISCONTINUED \| Modular Ice Machine, Full Cuber, Air-Cooled, 680 Lbs – 60Hz, 115V WM-1100 IC-0220 IC-0220-AH DISCONTINUED \| Undercounter Ice Machine Cuber, 220 Pounds – 60Hz, 115V, 1Ph IC-0220-AC DISCONTINUED \| Undercounter Ice Machine Cuber, 220 Pounds – 60Hz, 115V, 1Ph IU-0170 IU-0170-AH Undercounter Ice Machine, Half Cube, Air-Cooled, 170 Lbs., 77 Lbs. Storage IU-0170-AC Undercounter Ice Machine, Full Cube, Air-Cooled, 170 Lbs., 77 Lbs. Storage IU-0220 IU-0220-AH Undercounter Ice Machine, Half Cube, Air-Cooled, 220 Lbs., 77 Lbs. Storage IU-0220-AC Undercounter Ice Machine, Full Cube, Air-Cooled, 220 Lbs., 77 Lbs. Storage	Add to list Remove
210808800	SCREW SEMS (M6x25)	IM-1100 IRC-1100 IRC-1100 Remote Condenser, 1100 Lbs – 208-230V	Add to list Remove
210818600	COVER SCREW	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
215000600	NUT HEX	IM-0770 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 ID-H150 ID-H250 WM-1100	Add to list Remove
215018510	SOLDER ADAPTOR	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
215018700	WATER INLET SOCKET (3/8" NPT)	IM-1700 IM-2000 IM-1100	Add to list Remove
224002000	LOCKING CLIP 3/8"	IM-1700 IM-2000 IM-1100 WM-0460 WM-0680 IS-0700-AS	Add to list Remove
229013500	PE TUBE(O.D 3/8")	ID-0300 IM-1700 IM-2000 IM-1100 WC-0070	Add to list Remove
229026600	CLAMP HOSE	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 WM-0460WM-0460-22WM-0680 WM-1100	Add to list Remove
229027800	BRAIDED SILICONE HOSE	IM-1700 IM-2000 IM-1100 WC-0070 IU-0070 WM-0460WM-0460-22WM-0680 IS-0700-AS	Add to list Remove
229031700	CONNECTING HOSE(PUMP)	IM-1700 IM-2000 IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
229032100	DRAIN VALVE TO DRAIN-DELTROL (PVC)	IM-1700 IM-2000 IM-0750 IM-1100	Add to list Remove
229032800	PVC PIPE	IM-1100	Add to list Remove
232003500	GROMMET BUSHING	ID-0300 ID-0450 IM-1700 IM-2000 IM-0770 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 ID-0160 ID-H150 ID-H250WM-0460-22WM-1100	Add to list Remove
232003600	GROMMET BUSHING	IM-1700 IM-2000 IM-1100	Add to list Remove
301169400	COVER BRACKET	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
301169600	BRACKET DRAIN VALVE	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
301169700	BRACKET	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
301173610	SUPPORT WATER INLET VALVE	IM-1100	Add to list Remove
303036000	WATER LEVEL RUBBER-CAP	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
303036100	W. LEVLE RUBBER-HOLDER	IM-1700 IM-2000 IM-0750 IM-1100	Add to list Remove
303036300	O-RING	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
303036400	O-RING(AN110)	IM-1700 IM-2000 IM-1100	Add to list Remove
303036600	O-RING(AN105-?2.62x ID?3.63)	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
306009000	PIPE INSULATION	IM-1700 IM-2000 IM-1100 ID-0160	Add to list Remove
306016700	FOAM PE (EXPANSION)	IM-1700 IM-2000 IM-0770 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 WM-0460 WM-0680 WM-1100	Add to list Remove
306041901	INSULATION-DISPLAY	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
306042100	FOAM PUMP TO DRAIN	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
306042500	FOAM PUMP TO DISTRIBUTOR	IM-1700 IM-2000 IM-1100	Add to list Remove
308001200	FAN GUARD	IM-0770 IM-0550 IM-0750 IM-1100 WM-0460 WM-0680 WM-1100 IS-0700-AS	Add to list Remove
308001800	FAN BLADE	IM-0770 IM-0550 IM-0750 IM-1100 WM-0460 WM-0680 WM-1100 IS-0700-AS	Add to list Remove
314029900	PIN ASSY	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
317194400	TOP COVER	IM-0350 IM-0460 IM-0550 IM-0750 IM-1100	Add to list Remove
3171944100	TOP COVER	IM-1100	Add to list Remove
317197500	DISPLAY REAR-COVER	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
317197900	JUNCTION BOX COVER	IM-1700 IM-2000 IM-0750 IM-1100 WM-0680 IS-0700-AS	Add to list Remove
317204600	FRONT COVER	IM-1100	Add to list Remove
317210920	FRONT COVER	IM-1100	Add to list Remove
319007200	CAP RUBBER	IM-1100 IRC-1100	Add to list Remove
319009300	SENSOR CAP	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
319009800	PACKING ORIFFICE(PUMP) ?9	IM-0460IM-0460-22IM-0550IM-0550-22IM-1100	Add to list Remove
321005000	SHAFT HINGE	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
321005110	HINGE BRACKET	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
321005210	HINGE BRACKET DOWN	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
322002300	MAGNETIC CONTACTOR (220V)	IM-0750 IM-1100 WM-0680 WM-1100	Add to list Remove
325142300	PIPE TO EXP VALVE	IM-0550 IM-0750 IM-1100	Add to list Remove
325144400	OUTLET PIPE	IM-1100	Add to list Remove
325151001	EXTENSION CHARGE NIDDLE	IM-1100	Add to list Remove
325160500	RECEIVER OUTLET PIPE	IM-1100	Add to list Remove
325160600	DRIER PIPE	IM-1100	Add to list Remove
325160900	CHARGE REFRIGERANT	IM-1100	Add to list Remove
325161000	RECEIVER CHARGE	IM-1100	Add to list Remove
325161400	RECEIVER PIPE	IM-1100	Add to list Remove
325161500	HPR VALVE PIPE	IM-1100	Add to list Remove
339013400	WATER TROUGH	IM-0350 IM-0460 IM-0550 IM-0750 IM-1100	Add to list Remove
339015700	EVAPORATOR TOP COVER	IM-1100	Add to list Remove
339016000	AIR PROTECTOR	IM-1700 IM-2000 IM-1100	Add to list Remove
340007400	EXPANSION VALVE	IM-0350 IM-1100WM-0460-22WM-1100	Add to list Remove
340009300	EXPANSION VALVE	IM-1100 WM-0680 WM-1100	Add to list Remove
340012000	CHECK VALVE	IM-1100	Add to list Remove
340015500	SOLENOID VALVE BODY	IM-1100 WM-1100	Add to list Remove
340025800	WATER VALVE	IM-1700 IM-2000 IM-0750 IM-1100 WM-0680 WM-1100	Add to list Remove
340026300	SOLENOID VALVE COIL	IM-1100 WM-0680 WM-1100	Add to list Remove
340027300	SOLENOID VALVE PLUG	IM-1100 WM-0680 WM-1100	Add to list Remove
340027520	WATER INLET VALVE	IM-1700 IM-2000 IM-0750 IM-1100 IS-0700-AS	Add to list Remove
340031900	HPR VALVE	IM-1100	Add to list Remove
341012300	HINGE SUPPORT	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 WM-1100	Add to list Remove
341012401	FRONT TOP SUPPORT	IM-0350 IM-0460 IM-0550 IM-0750 IM-1100 WM-1100	Add to list Remove
341012501	FRONT LOWER SUPPORT	IM-0350 IM-0460 IM-0550 IM-0750 IM-1100 WM-1100	Add to list Remove
341012602	FRONT TOP CAP	IM-0350 IM-0460 IM-0550 IM-0750 IM-1100	Add to list Remove
341012702	FRONT LOWER CAP	IM-0350 IM-0460 IM-0550 IM-0750 IM-1100	Add to list Remove
348010200	SIDE PANEL B-ENDCAP(L)	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
348010300	SIDE PANEL B-ENDCAP(R)	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
349097000	BACK PANEL	IM-0350 IM-0460 IM-0550 IM-0750 IM-1100	Add to list Remove
349098900	LEFT SIDE W-PANEL	IM-1700 IM-2000 IM-1100	Add to list Remove
349099110	RIGHT SIDE W-PANEL	IM-1100	Add to list Remove
349107000	BACK PANEL	IM-1100	Add to list Remove
353015901	FAN MOTOR	IM-0750 IM-1100 WM-0680 WM-1100 IS-0700-AS	Add to list Remove
353034900	AXIAL FAN MOTOR	IM-1100	Add to list Remove
355007100	ICE/OFF/WASH SWITCH	IM-0770 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 ID-0160 WM-0460WM-0460-22WM-0680 WM-1100 IC-0220 IU-0170 IU-0220	Add to list Remove
355012700	PRESSURE SWITCH	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 WM-0680	Add to list Remove
355025100	ROCKER SWITCH	IM-1700 IM-2000 IM-1100	Add to list Remove
367013000	DISPLAY PCB	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
367013100	FND PCB	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
367013400	MAIN PCB	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
367013400F90	MAIN & FND PCB KIT (F90SEC)	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
372001300	FILTER DRYER	ID-0300 ID-0450 IM-0770 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 WM-0460WM-0460-22WM-0680 WM-1100 IS-0700-AS	Add to list Remove
374143800	JUCTION BOX	IM-0750 IM-1100	Add to list Remove
374143900	CONTROL BOX	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
374144000	CAPACITOR BOX	IM-0750 IM-1100	Add to list Remove
374144001	CAPACITOR BOX (only box)	IM-1100	Add to list Remove
374144300	CONTROL BOX COVER	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
374148110	JUCTION BOX	IM-1700 IM-2000 IM-1100	Add to list Remove
377173600	REMOTE CONDENSER POWER CABLE	IM-1100 IRC-1100	Add to list Remove
377173610	REMOTE CONDENSER POWER CABLE (Short)	IM-1100 IRC-1100	Add to list Remove
394022900	COMPRESSOR	IM-1100	Add to list Remove
398013801	STEM ELBOW	IM-1100	Add to list Remove
398016500	STRAIGHT ADAPTOR (3/8")	IM-1700 IM-2000 IM-1100	Add to list Remove
406023030	Water pump for the IM-1100	IM-1100	Add to list Remove
406023200	FAN MOTOR ASSY	IM-0750 IM-1100	Add to list Remove
406025010	WATER PUMP ASSY	IM-1100	Add to list Remove
409041300	EVAPORATOR COMPLETE ASSY-C	IM-1100	Add to list Remove
409041310	EVAPORATOR COMPLETE ASSY-H	IM-1100	Add to list Remove
411031800	CONDENSER ASSY	IM-1100	Add to list Remove
413001500	ASSY LEGS	IM-1100 IRC-1100	Add to list Remove
415011800	FND CIRCUIT BOARD (FLOAT)	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
415011900	MAIN CIRCUIT BOARD (FLOAT)	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
420048100	LEFT SIDE PANEL ASSY	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
420049300	LEFT SIDE PANEL ASSY	IM-1700 IM-2000 IM-1100	Add to list Remove
420049410	RIGHT SIDE PANEL ASSY	IM-1100	Add to list Remove
422002710	FRONT PANEL TOTAL ASSY	IM-1100	Add to list Remove
422002750	FRONT PANEL	IM-1100	Add to list Remove
422002810	FRONT PANEL FOAM ASSY	IM-1100	Add to list Remove
422002840	FRONT PANEL FOAM ASSY	IM-1100	Add to list Remove
426070710	COMPRESSOR STARTER KIT	IM-1100	Add to list Remove
427059100	EVAP TOP COVER	IM-1100	Add to list Remove
427059100	EVAP TOP COVER	IM-1100	Add to list Remove
427059100	EVAP TOP COVER	IM-1100	Add to list Remove
427059100	EVAP TOP COVER	IM-1100	Add to list Remove
429003900	ASSY HIGH PRESSURE SWITCH	IM-0770 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 WM-0460 WM-0680 WM-1100 IC-0220	Add to list Remove
429009600	JOINT COUPLER	IM-1100 IRC-1100	Add to list Remove
429009700	JOINT COUPLER	IM-1100 IRC-1100	Add to list Remove
429010200	JOINT COUPLER	IM-1100 IRC-1100	Add to list Remove
432034910	FRONT TOP CAP COMPLETE ASSY	IM-0350 IM-0460 IM-0550 IM-0750 IM-1100	Add to list Remove
432035010	FRONT LOWER CAP COMPLETE ASSY	IM-0350 IM-0460 IM-0550 IM-0750 IM-1100	Add to list Remove
433044000	HEAT EXCHANGE PIPE	IM-1100	Add to list Remove
433044100	DISCHARGE PIPE	IM-1100	Add to list Remove
433045700	HEAT EXCHANGE PIPE ASSY	IM-1100	Add to list Remove
433045800	RECEIVER INLET ASSY	IM-1100	Add to list Remove
433045900	DISCHARGE PIPE ASSY	IM-1100	Add to list Remove
440033800	FRONT DISPLAY	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
440033820	FRONT DISPLAY LABEL	IM-1700 IM-2000 IM-1100	Add to list Remove
443053920	BASE	IM-1100 IRC-1100	Add to list Remove
459000400	SERVICE/CHARGING PORT	ID-0450 IM-0770 IM-1100 WM-0460WM-0460-22IS-0700-AS	Add to list Remove
466004000	WATER DISTRIBUTOR ASSY	IM-0350 IM-0460 IM-0550 IM-0750 IM-1100	Add to list Remove
469002810	WATER INLET HOSE ASSY	IM-1700 IM-2000 IM-0350 IM-0460 IM-0550 IM-0750 IM-1100	Add to list Remove
469003010	WATER INLET VALVE ASSY	IM-0750 IM-1100	Add to list Remove
482002400	WATER CURTAIN ASSY	IM-1100	Add to list Remove
482002800	WATER CURTAIN ASSY (old part no.)	IM-1100	Add to list Remove
500000900	NOISE FILTER	IM-0770 IM-1100 IS-0700-AS IC-0220 IU-0170 IU-0220	Add to list Remove
605001800	STRAINER	IM-1100 WM-1100	Add to list Remove
640008800	AIR FILTER	IM-1100	Add to list Remove
656004610	F-PANEL GASKET(IN)	IM-1100	Add to list Remove
701002000	CURTAIN SENSOR	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 WU-0100 WM-0460WM-0460-22WM-0680 IC-0220	Add to list Remove
701003100	ICE THICKNESS PROBE ASSY	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
701003200	WATER LEVEL PROBE ASSY	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
701003211	3-PRONG WATER LEVEL PROBE	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
701003300	MAGNET SENSOR	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
701004000	WATER LEVEL PROBE ASSY (FLOAT)	IM-1700 IM-2000 IM-1100	Add to list Remove
722014100	POWER CORD ASSY	IM-0750 IM-1100	Add to list Remove
722017100	POWER CORD	IM-1100	Add to list Remove
MFCX0832R	MACHINE SCREW	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
MFCX1022RP	MACHINE SCREW	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove
MPCX0610L	MACHINE SCREW	IM-1100	Add to list Remove
MTCX0812R	MACHINE SCREW	IM-1100	Add to list Remove
MTCX0816R	MACHINE SCREW (M4x8)	IM-1700 IM-2000 IM-1100	Add to list Remove
MTCX1022R	MACHINE SCREW	IM-1100 IU-0090 IRC-1100	Add to list Remove
TFCQ0841RP	TAPPING SCREW	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100	Add to list Remove

Cube Ice

Nugget Ice

Flake Ice

Specialty Ice

Slush

Modular Ice Machine, Full Cube, Remote-Cooled, 1100 Lbs., 30-Inch Width, 208-230V

IM-1100-RC

Features

Specifications

Filtration

Warranty

Resources

Parts

IM-1700-WH

Modular Ice Machine, Half Cube, Water-Cooled, 1700 Lbs., 48-Inch Width

IM-1700-RH

Modular Ice Machine, Half Cube, Remote-Cooled, 1700 Lbs., 48-Inch Width

IM-1700-WC

Modular Ice Machine, Full Cube, Water-Cooled, 1700 Lbs., 48-Inch Width

IM-1700-RC

Modular Ice Machine, Full Cube, Remote-Cooled, 1700 Lbs., 48-Inch Width

IM-1700-AH

Modular Ice Machine, Half Cube, Air-Cooled, 1700 Lbs., 48-Inch Width

IM-1700-AC

Modular Ice Machine, Full Cube, Air-Cooled, 1700 Lbs., 48-Inch Width

IM-2000-WH

Modular Ice Machine, Half Cube, Water-Cooled, 2000 Lbs., 48-Inch Width

IM-2000-RH

Modular Ice Machine, Half Cube, Remote-Cooled, 2000 Lbs., 48-Inch Width

IM-2000-WC

Modular Ice Machine, Full Cube, Water-Cooled, 2000 Lbs., 48-Inch Width

IM-2000-RC

Modular Ice Machine, Full Cube, Remote-Cooled, 2000 Lbs., 48-Inch Width

IM-2000-AH

Modular Ice Machine, Half Cube, Air-Cooled, 2000 Lbs., 48-Inch Width

IM-2000-AC

Modular Ice Machine, Full Cube, Air-Cooled, 2000 Lbs., 48-Inch Width

IM-0350-AH-22

Modular Ice Machine, Half Cube, Air-Cooled, 350 Lbs, 22-Inch Width

IM-0350-AH

Modular Ice Machine, Half Cube, Air-Cooled, 350 Lbs., 30-Inch Width

IM-0350-AC

Modular Ice Machine, Full Cube, Air-Cooled, 350 Lbs., 30-Inch Width

IM-0350-AC-22

Modular Ice Machine, Full Cube, Air-Cooled, 350 Lbs., 22-Inch Width

IM-0460-WC

Modular Ice Machine, Full Cube, Water-Cooled, 460 Lbs., 30-Inch Width

IM-0460-WH

Modular Ice Machine, Half Cube, Water-Cooled, 460 Lbs., 30-Inch Width

IM-0460-AH-22

Modular Ice Machine, Half Cube, Air-Cooled, 460 Lbs., 22-Inch Width

IM-0460-AH

Modular Ice Machine, Half Cube, Air-Cooled, 460 Lbs., 30-Inch Width

IM-0460-AC

Modular Ice Machine, Full Cube, Air-Cooled, 460 Lbs, 30-Inch Width

IM-0460-AC-22

Modular Ice Machine, Full Cube, Air-Cooled, 460 Lbs, 22-Inch Width

IM-0550-WH

Modular Ice Machine, Half Cube, Water-Cooled, 550 Lbs., 30-Inch Width

IM-0550-AH-22

Modular Ice Machine, Half Cube, Air-Cooled, 550 Lbs., 22-Inch Width

IM-0550-AH

Modular Ice Machine, Half Cuber, Air-Cooled, 550 Lbs., 30-Inch Width

IM-0550-WC

Modular Ice Machine, Half Cube, Water-Cooled, 550 Lbs., 30-Inch Width

IM-0550-AC-22

Modular Ice Machine, Full Cube, Air-Cooled, 550 Lbs., 22-Inch Width

IM-0550-AC

Modular Ice Machine, Full Cube, Air-Cooled, 550 Lbs., 30-Inch Width

IM-0750-AC

Modular Ice Machine, Full Cube, Air-Cooled, 750 Lbs., 30-Inch Width, 220V

IM-0750-AH

Modular Ice Machine, Half Cube, Air-Cooled, 750 Lbs., 30-Inch Width, 220V

IM-1100-WH

Modular Ice Machine, Half Cube, Water-Cooled, 1100 Lbs., 30-Inch Width, 208-230V

IM-1100-WC

Modular Ice Machine, Full Cube, Water-Cooled, 1100 Lbs., 30-Inch Width, 208-230V

IM-1100-RH

Modular Ice Machine, Half Cube, Remote-Cooled, 1100 Lbs., 30-Inch Width, 208-230V

IM-1100-RC
