DISCONTINUED | Modular Ice Machine Cuber, Air-Cooled, 1100 Lbs – 60Hz, 115V

WM-1100-AC

Request Information SPEC SHEET

Icetro ice machine that is no longer in production. See similar model numbers or contact Icetro for replacement model.

Features

Modular or undercounter ice makers
Full cube or half cube
300 to 600 lbs. of production per day

Specifications

Ice Type: Cube
Condenser Type: Air Cooled
Electrical: 115V/60Hz/

Filtration

Icetro America always recommends using a dedicated filtration system for its ice machines. However, using the IcePro filter with Citryne™ and registering at icetrowaterproducts.com/registration will add one (1) year of warranty coverage.

Warranty

3 Years Parts and Labor

Resources

Spec Sheets Download

User Manuals Download

2024 Ice Machine Catalog, 12 pp Download

Icetro 2024 Ice Machine Catalog (4 pp) Download

Icetro Ice Machines Features and Benefits Download

Icetro Ice and Slush Trifold Download

Icetro WMSeries Modular ServiceManual 1 Download

Icetro WM-1100-ACAH Parts Manual Download

Parts

Parts List

Part No.	Description	Models
203002200	BAND SPRING 23	IM-0770 IM-0770-AN Modular Ice Machine, Nugget Ice, Air-Cooled, 770 Lbs., 22-Inch Width IM-0770-AF Modular Ice Machine, Flake Ice, Air-Cooled, 770 Lbs., 22-Inch Width WC-0070 WC-0070-AB DISCONTINUED \| Undercounter Ice Machine – 60Hz, 115V WC-0070-AB DISCONTINUED \| Undercounter Ice Machine Cuber, 70 Lbs. – 60Hz, 115V ID-0160 ID-0160-AN Nugget Ice And Water Dispenser, 150 lbs., 5.3 lbs. Storage ID-H150 ID-H150-22 Hotel Cube Dispenser, 150 lbs. Storage, 22-Inch Width ID-H250 ID-H250-30 Hotel Cube Dispenser, 250 lbs. Storage, 30-Inch Width WU-0100 WU-0100-AC Undercounter Ice Machine, Full Cube, Air-Cooled, 105 Lbs, 27 Lbs Storage IU-0070 IU-0070-OU Undercounter Ice Machine, Gourmet Cube, 70 Lbs., 26 Lbs. Storage IU-0090 IU-0090-ANP Undercounter Ice Machine, Nugget Ice, 90 Lbs., 24.3 Lbs. Storage IU-0090-AN Undercounter Ice Machine, Nugget Ice, 90 Lbs., 24.3 Lbs. Storage WM-0460 WM-0460-WC-22 DISCONTINUED \| Modular Ice Machine, Full Cuber, Water-Cooled, 460 Lbs, 22-Inch – 60Hz, 115V WM-0460-AH-22 DISCONTINUED \| Modular Ice Machine, Full Cuber, Air-Cooled, 460 Lbs, 22-Inch – 60Hz, 115V WM-0460-AH DISCONTINUED \| Modular Ice Machine, Full Cuber, Air-Cooled, 460 Lbs – 60Hz, 115V WM-0460-AC-22 DISCONTINUED \| Modular Ice Machine, Full Cuber, Air-Cooled, 460 Lbs, 22-Inch – 60Hz, 115V WM-0460-AC DISCONTINUED \| Modular Ice Machine, Full Cuber, Air-Cooled, 460 Lbs – 60Hz, 115V WM-0460-22WM-0680 WM-0680-WH DISCONTINUED \| Modular Ice Machine, Full Cuber, Water-Cooled, 680 Lbs – 60Hz, 115V WM-0680-WC DISCONTINUED \| Modular Ice Machine, Full Cuber, Water-Cooled, 680 Lbs – 60Hz, 115V WM-0680-AH DISCONTINUED \| Modular Ice Machine, Full Cuber, Air-Cooled, 680 Lbs – 60Hz, 115V WM-0680-AC DISCONTINUED \| Modular Ice Machine, Full Cuber, Air-Cooled, 680 Lbs – 60Hz, 115V WM-1100 WM-1100-AC DISCONTINUED \| Modular Ice Machine Cuber, Air-Cooled, 1100 Lbs – 60Hz, 115V	Add to list Remove
203003300	BAND SPRING 21	IM-1700 IM-1700-WH Modular Ice Machine, Half Cube, Water-Cooled, 1700 Lbs., 48-Inch Width IM-1700-RH Modular Ice Machine, Half Cube, Remote-Cooled, 1700 Lbs., 48-Inch Width IM-1700-WC Modular Ice Machine, Full Cube, Water-Cooled, 1700 Lbs., 48-Inch Width IM-1700-RC Modular Ice Machine, Full Cube, Remote-Cooled, 1700 Lbs., 48-Inch Width IM-1700-AH Modular Ice Machine, Half Cube, Air-Cooled, 1700 Lbs., 48-Inch Width IM-1700-AC Modular Ice Machine, Full Cube, Air-Cooled, 1700 Lbs., 48-Inch Width IM-2000 IM-2000-WH Modular Ice Machine, Half Cube, Water-Cooled, 2000 Lbs., 48-Inch Width IM-2000-RH Modular Ice Machine, Half Cube, Remote-Cooled, 2000 Lbs., 48-Inch Width IM-2000-WC Modular Ice Machine, Full Cube, Water-Cooled, 2000 Lbs., 48-Inch Width IM-2000-RC Modular Ice Machine, Full Cube, Remote-Cooled, 2000 Lbs., 48-Inch Width IM-2000-AH Modular Ice Machine, Half Cube, Air-Cooled, 2000 Lbs., 48-Inch Width IM-2000-AC Modular Ice Machine, Full Cube, Air-Cooled, 2000 Lbs., 48-Inch Width IM-0350 IM-0350-AH-22 Modular Ice Machine, Half Cube, Air-Cooled, 350 Lbs, 22-Inch Width IM-0350-AH Modular Ice Machine, Half Cube, Air-Cooled, 350 Lbs., 30-Inch Width IM-0350-AC Modular Ice Machine, Full Cube, Air-Cooled, 350 Lbs., 30-Inch Width IM-0350-AC-22 Modular Ice Machine, Full Cube, Air-Cooled, 350 Lbs., 22-Inch Width IM-0350-22IM-0460 IM-0460-WC Modular Ice Machine, Half Cube, Water-Cooled, 460 Lbs., 30-Inch Width IM-0460-WH Modular Ice Machine, Half Cube, Water-Cooled, 460 Lbs., 30-Inch Width IM-0460-AH-22 Modular Ice Machine, Half Cube, Air-Cooled, 460 Lbs., 22-Inch Width IM-0460-AH Modular Ice Machine, Half Cube, Air-Cooled, 460 Lbs., 30-Inch Width IM-0460-AC Modular Ice Machine, Full Cube, Air-Cooled, 460 Lbs, 30-Inch Width IM-0460-AC-22 Modular Ice Machine, Full Cube, Air-Cooled, 460 Lbs, 22-Inch Width IM-0460-22IM-0550 IM-0550-WH Modular Ice Machine, Half Cube, Water-Cooled, 550 Lbs., 30-Inch Width IM-0550-AH-22 Modular Ice Machine, Half Cube, Air-Cooled, 550 Lbs., 22-Inch Width IM-0550-AH Modular Ice Machine, Half Cuber, Air-Cooled, 550 Lbs., 30-Inch Width IM-0550-WC Modular Ice Machine, Half Cube, Water-Cooled, 550 Lbs., 30-Inch Width IM-0550-AC-22 Modular Ice Machine, Full Cube, Air-Cooled, 550 Lbs., 22-Inch Width IM-0550-AC Modular Ice Machine, Full Cube, Air-Cooled, 550 Lbs., 30-Inch Width IM-0550-22IM-0750 IM-0750-AC Modular Ice Machine, Full Cube, Air-Cooled, 750 Lbs., 30-Inch Width, 220V IM-0750-AH Modular Ice Machine, Half Cube, Air-Cooled, 750 Lbs., 30-Inch Width, 220V IM-1100 IM-1100-WH Modular Ice Machine, Half Cube, Water-Cooled, 1100 Lbs., 30-Inch Width, 208-230V IM-1100-WC Modular Ice Machine, Full Cube, Water-Cooled, 1100 Lbs., 30-Inch Width, 208-230V IM-1100-RH Modular Ice Machine, Half Cube, Remote-Cooled, 1100 Lbs., 30-Inch Width, 208-230V IM-1100-RC Modular Ice Machine, Full Cube, Remote-Cooled, 1100 Lbs., 30-Inch Width, 208-230V IM-1100-AC Modular Ice Machine, Full Cube, Air-Cooled, 1100 Lbs., 30-Inch Width, 208-230V IM-1100-AH Modular Ice Machine, Half Cube, Air-Cooled, 1100 Lbs., 30-Inch Width, 208-230V ID-0160 IU-0090 WM-1100	Add to list Remove
210804501	THUMB SCREW	IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 WC-0070 ID-H150 ID-H250 WU-0100 IU-0070 IU-0090 WM-0460WM-0460-22WM-0680 WM-1100 IC-0220 IC-0220-AH DISCONTINUED \| Undercounter Ice Machine Cuber, 220 Pounds – 60Hz, 115V, 1Ph IC-0220-AC DISCONTINUED \| Undercounter Ice Machine Cuber, 220 Pounds – 60Hz, 115V, 1Ph IU-0170 IU-0170-AH Undercounter Ice Machine, Half Cube, Air-Cooled, 170 Lbs., 77 Lbs. Storage IU-0170-AC Undercounter Ice Machine, Full Cube, Air-Cooled, 170 Lbs., 77 Lbs. Storage IU-0220 IU-0220-AH Undercounter Ice Machine, Half Cube, Air-Cooled, 220 Lbs., 77 Lbs. Storage IU-0220-AC Undercounter Ice Machine, Full Cube, Air-Cooled, 220 Lbs., 77 Lbs. Storage	Add to list Remove
214015500	BOLT TROUGH IN/OUT	WC-0070 IU-0070WM-0460-22WM-1100	Add to list Remove
215000600	NUT HEX	IM-0770 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 ID-H150 ID-H250 WM-1100	Add to list Remove
215007500	NUT HEX	WC-0070 IU-0070 WM-0460WM-0460-22WM-0680 WM-1100	Add to list Remove
215013400	SOCKET (3/4" NPT)	IM-1700 IM-2000 IM-0770 WC-0070 ID-0160 WU-0100 IU-0070 WM-0460WM-0460-22WM-0680 WM-1100 IC-0220 IU-0170 IU-0220	Add to list Remove
215013500	SOCKET (3/8" NPT)	ID-0300 ID-0300-AN Nugget Ice And Water Dispenser, 300 lbs., 11 lbs. Storage ID-0450 ID-0450-AN Nugget Ice And Water Dispenser, 450 lbs., 30 lbs. Storage ID-0160 WU-0100 IU-0090 WM-0680 WM-1100	Add to list Remove
215018000	HEX NUT	WM-0460 WM-0680 WM-1100	Add to list Remove
224002300	FL CLIP	WM-0460WM-0460-22WM-0680 WM-1100	Add to list Remove
229008100	CLAMP HOSE	WC-0070 WM-0460WM-0460-22WM-0680 WM-1100 IC-0220 IU-0170 IU-0220	Add to list Remove
229013600	PE TUBE(O.D 1/4")	ID-0300 ID-0450 ID-0160 WU-0100 IU-0090 WM-0460 WM-0680 WM-1100	Add to list Remove
229026300	WATER PUMP OUT HOSE	WM-1100	Add to list Remove
229026500	HOSE T	WM-0460 WM-0680 WM-1100	Add to list Remove
229026600	CLAMP HOSE	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 WM-0460WM-0460-22WM-0680 WM-1100	Add to list Remove
229026900	ELBOW HOSE	WM-0460 WM-0680 WM-1100	Add to list Remove
229027000	DRAIN HOSE	WM-1100	Add to list Remove
232000500	BUSHING	WM-0460WM-0460-22WM-0680 WM-1100 IS-0700-AS IS-0700-AS Snow Ice, Freestanding, Air-Cooled, 700 Lbs – 60Hz, 208-230V	Add to list Remove
232003500	GROMMET BUSHING	ID-0300 ID-0450 IM-1700 IM-2000 IM-0770 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 ID-0160 ID-H150 ID-H250WM-0460-22WM-1100	Add to list Remove
232003800	GROMMET BUSHING	WU-0100 IU-0090 WM-0460WM-0460-22WM-0680 WM-1100	Add to list Remove
301031200	BRACKET CAPACITOR	WM-0680 WM-1100	Add to list Remove
301031210	BRACKET CAPACITOR	WM-1100	Add to list Remove
301102210	BRACKET THEMOSTAT	WM-1100	Add to list Remove
301114810	CONTROL BOX	WM-1100	Add to list Remove
301115000	BRACKET MAGNET	WM-1100	Add to list Remove
301115100	CONTROL BOX COVER	WM-1100	Add to list Remove
301115610	WATER TROUGH GUIDE	WM-1100	Add to list Remove
301117900	BRACKET LED LAMP ASSY	WM-1100	Add to list Remove
301123200	BASE PLATE COMP	WM-1100	Add to list Remove
301133600	JOINT BOX	WM-0680 WM-1100	Add to list Remove
301163811	MAGNET SENSOR BRACKET	WM-1100	Add to list Remove
303005501	PACKING-NIDDLE	WC-0070 IU-0070 WM-0460WM-0460-22WM-0680 WM-1100	Add to list Remove
306016700	FOAM PE (EXPANSION)	IM-1700 IM-2000 IM-0770 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 WM-0460 WM-0680 WM-1100	Add to list Remove
306026800	FOAM PE (WATER PUMP IN/OUT)	WM-0460 WM-0680 WM-1100	Add to list Remove
306028100	FOAM PE(EVAPORATOR COVER)	WM-1100	Add to list Remove
306028200	FOAM PE	WM-1100	Add to list Remove
306028300	FOAM PE ( R )	WM-1100	Add to list Remove
306028400	FOAM PE( L )	WM-1100	Add to list Remove
306028500	FOAM PE( L FRONT)	WM-1100	Add to list Remove
306028600	FOAM PE(R FRONT)	WM-1100	Add to list Remove
306028700	FOAM PE	WM-1100	Add to list Remove
306029100	FOAM PE	WM-1100	Add to list Remove
306029200	FOAM PE	WM-1100	Add to list Remove
306029300	FOAM PE (R,L)	WM-1100	Add to list Remove
306029800	FOAM PE(DISPLAY)	WM-1100	Add to list Remove
306031800	FOAM PE(SPACE LAMP)	WM-1100 IS-0700-AS	Add to list Remove
306039300	FOAM PE	WM-1100	Add to list Remove
308001200	FAN GUARD	IM-0770 IM-0550 IM-0750 IM-1100 WM-0460 WM-0680 WM-1100 IS-0700-AS	Add to list Remove
308001800	FAN BLADE	IM-0770 IM-0550 IM-0750 IM-1100 WM-0460 WM-0680 WM-1100 IS-0700-AS	Add to list Remove
310004301	BUSHING	IM-0770 WC-0070 WU-0100 WM-0460WM-0460-22WM-0680 WM-1100 IC-0220 IU-0170 IU-0220	Add to list Remove
314011700	SUPPORT PCB	WM-0460-22WM-1100	Add to list Remove
317141400	TOP COVER(ABS)	WM-1100	Add to list Remove
317141700	EVAPORATOR ROOF COVER	WM-1100	Add to list Remove
317142701	BRACKET TOP SUPPORT	WM-1100	Add to list Remove
317150300	BRACKET ICE MAKING WATER	WM-1100	Add to list Remove
317153310	ICE BLOCK	WM-1100	Add to list Remove
317159100	COVER-JOINT BOX	WM-0680 WM-1100	Add to list Remove
317176300	BRACKET DRAIN	WM-1100	Add to list Remove
317197000	TOP COVER	WM-1100	Add to list Remove
318029821	BASE PLATE BOTTOM	WM-1100	Add to list Remove
318029911	BASE PLATE TOP	WM-1100	Add to list Remove
319004301	LEFT PIPE CAP	WM-0460WM-0460-22WM-0680 WM-1100	Add to list Remove
319004401	RIGHT PIPE CAP	WM-0460-22WM-0680 WM-1100	Add to list Remove
319006500	RIGHT PIPE CAP	WM-0460WM-0460-22WM-0680 WM-1100	Add to list Remove
321005100	HINGE BRACKET	WM-1100	Add to list Remove
321005202	HINGE BRACKET DOWN	WM-1100	Add to list Remove
322002300	MAGNETIC CONTACTOR (220V)	IM-0750 IM-1100 WM-0680 WM-1100	Add to list Remove
322005600	MOLDING MAGNET	ID-0450 ID-H150 ID-H250 WU-0100 WM-0460WM-0460-22WM-0680 WM-1100 IC-0220 IU-0170 IU-0220	Add to list Remove
325026201	DISTRIBUDER PIPE	WM-0460 WM-0680 WM-1100	Add to list Remove
325026300	INNER DISTRIBUDER PIPE	WM-0460 WM-0680 WM-1100	Add to list Remove
325087310	HOT GAS PIPE	WM-1100	Add to list Remove
325088000	PIPE	WM-0460 WM-0680 WM-1100	Add to list Remove
325095600	DISCHARGE PIPE ASSY	WM-1100	Add to list Remove
325095620	DISCHARGE PIPE ASSY	WM-1100	Add to list Remove
325144600	JOINT PIPE-EXP 3/8"	WM-0460 WM-0680 WM-1100	Add to list Remove
339008110	EVAPORATOR FRAME ONE COVER	WM-1100	Add to list Remove
339008120	EVAPORATOR FRAME ONE COVER	WM-1100	Add to list Remove
339008220	EVAPORATOR FRAME TWO	WM-1100	Add to list Remove
339008230	EVAPORATOR FRAME TWO	WM-1100	Add to list Remove
339008300	EVAPORATOR FRAME ONE	WM-1100	Add to list Remove
339008410	EVAPORATOR FRAME THREE	WM-1100	Add to list Remove
339011010	EVAPORATOR FRAME DOWN	WM-1100	Add to list Remove
339012700	EVAPORATOR FRAME L	WM-1100	Add to list Remove
339012800	EVAPORATOR FRAME R	WM-1100	Add to list Remove
340007400	EXPANSION VALVE	IM-0350 IM-1100WM-0460-22WM-1100	Add to list Remove
340009300	EXPANSION VALVE	IM-1100 WM-0680 WM-1100	Add to list Remove
340015300	WATER INLET VALVE	WM-1100	Add to list Remove
340015500	SOLENOID VALVE BODY	IM-1100 WM-1100	Add to list Remove
340025800	WATER VALVE	IM-1700 IM-2000 IM-0750 IM-1100 WM-0680 WM-1100	Add to list Remove
340026300	SOLENOID VALVE COIL	IM-1100 WM-0680 WM-1100	Add to list Remove
340027300	SOLENOID VALVE PLUG	IM-1100 WM-0680 WM-1100	Add to list Remove
341012200	HINGE SUPPORT BRACKET	WM-1100	Add to list Remove
341012300	HINGE SUPPORT	IM-1700 IM-2000 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 WM-1100	Add to list Remove
341012401	FRONT TOP SUPPORT	IM-0350 IM-0460 IM-0550 IM-0750 IM-1100 WM-1100	Add to list Remove
341012501	FRONT LOWER SUPPORT	IM-0350 IM-0460 IM-0550 IM-0750 IM-1100 WM-1100	Add to list Remove
341012902	HANGER	WM-0460-22WM-1100	Add to list Remove
341013000	HANDLE	WM-1100	Add to list Remove
341014000	BRACKET FLOAT	WU-0100 WM-0460WM-0460-22WM-0680 WM-1100	Add to list Remove
349076300	SIDE PANEL L	WM-1100	Add to list Remove
349076400	SIDE PANEL R	WM-1100	Add to list Remove
349085200	BACK PANEL	WM-1100	Add to list Remove
350007400	FRAME LEFT	WM-1100	Add to list Remove
350007500	FRAME RIGHT	WM-1100	Add to list Remove
350007600	FRAME TOP RIGHT	WM-1100	Add to list Remove
350007700	FRAME TOP LEFT	WM-1100	Add to list Remove
350007800	FRAME BACK LEFT	WM-1100	Add to list Remove
350007900	FRAME BACK RIGHT	WM-1100	Add to list Remove
350008100	FRAME BACK	WM-1100	Add to list Remove
353015901	FAN MOTOR	IM-0750 IM-1100 WM-0680 WM-1100 IS-0700-AS	Add to list Remove
353020401	WATER PUMP	WM-0680 WM-1100	Add to list Remove
355007100	ICE/OFF/WASH SWITCH	IM-0770 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 ID-0160 WM-0460WM-0460-22WM-0680 WM-1100 IC-0220 IU-0170 IU-0220	Add to list Remove
355009100	SWITCH 2L (DRAIN)	WM-0460WM-0460-22WM-0680 WM-1100 IS-0700-AS	Add to list Remove
355018500	PRESSURE SWITCH	IM-0770 WM-0460WM-0460-22WM-1100 IC-0220 IU-0170 IU-0220	Add to list Remove
357013500	STRAT RELAY	WM-1100	Add to list Remove
357019400	STRAT RELAY	WM-1100	Add to list Remove
367010400	MAIN PCB	WM-1100	Add to list Remove
372001300	FILTER DRYER	ID-0300 ID-0450 IM-0770 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 WM-0460WM-0460-22WM-0680 WM-1100 IS-0700-AS	Add to list Remove
386006300	WATER BLOCK SIDE L	WM-1100	Add to list Remove
386006400	WATER BLOCK SIDE R	WM-1100	Add to list Remove
394017500	COMPRESSOR	WM-1100	Add to list Remove
394022500	COMPRESSOR	WM-1100	Add to list Remove
395004400	CAPACITOR HOLDER	WM-0680 WM-1100	Add to list Remove
395004410	CAPACITOR HOLDER	WM-1100	Add to list Remove
398012200	EQUAL STRAIGHT CONNECTOR	WU-0100 WM-0460WM-0460-22WM-0680 WM-1100	Add to list Remove
398013400	STRAIGHT ADAPTOR	ID-0300 ID-0450 ID-0160 WU-0100 IU-0090 WM-0680 WM-1100	Add to list Remove
406010400	WATER PUMP ASSY	WM-0680 WM-1100	Add to list Remove
409029201	EVAPORATOR PLATING ASSY_C	WM-1100	Add to list Remove
409041200	ASSY EVAPORATOR-C	WM-1100	Add to list Remove
409041210	ASSY EVAPORATOR-H	WM-1100	Add to list Remove
409042400	ASSY EVAPORATOR-C	WM-1100	Add to list Remove
409042410	ASSY EVAPORATOR-H	WM-1100	Add to list Remove
411016400	DOUBLE WATER CONDENSER	WM-1100	Add to list Remove
411017900	CONDENSER ASSY	WM-1100 IRC-1100 IRC-1100 Remote Condenser, 1100 Lbs – 208-230V	Add to list Remove
411017910	CONDENSER ASSY	WM-1100	Add to list Remove
411021400	WATER IN OUT ASSY-NPT	WM-1100	Add to list Remove
415001200	DISPLAY PCB ASSY	WU-0100 WM-0460WM-0460-22WM-0680 WM-1100 IC-0220 IU-0170 IU-0220	Add to list Remove
415008801	ASSY MAIN PCB	WM-0460WM-0460-22WM-0680 WM-1100	Add to list Remove
415008807	ASSY MAIN PCB (V7.0)	WM-0460WM-0460-22WM-0680 WM-1100	Add to list Remove
417015800	DRAIN VALVE ASSY	WM-1100	Add to list Remove
426051700	ASSY BUDER	WM-1100	Add to list Remove
426056001	CONTROL BOX ASSY	WM-1100	Add to list Remove
426064800	ASSY JUNCTION BOX SUB	WM-1100	Add to list Remove
427025900	ICE THICKNESS PROBE ASSY	WM-0460WM-0460-22WM-0680 WM-1100	Add to list Remove
427026000	ASSY EVAPORATOR COVER	WM-1100	Add to list Remove
429003900	ASSY HIGH PRESSURE SWITCH	IM-0770 IM-0350IM-0350-22IM-0460IM-0460-22IM-0550IM-0550-22IM-0750 IM-1100 WM-0460 WM-0680 WM-1100 IC-0220	Add to list Remove
432035020	FRONT BOTTOM CAP ASSY	WM-1100	Add to list Remove
432042600	FRONT PANEL TOTAL ASSY	WM-1100	Add to list Remove
433027701	HEAT EXCHANGE PIPE ASSY	WM-1100	Add to list Remove
433027711	HEAT EXCHANGE PIPE ASSY	WM-1100	Add to list Remove
440032000	LED LAMP SHEET	WM-1100	Add to list Remove
447011000	EVAPORATOR FRAME TOP ASSY	WM-0460 WM-0680 WM-1100	Add to list Remove
468012300	WATER CURTAIN ASSY	WM-1100	Add to list Remove
468016200	ASSY PUMP HOSE SUB	WM-1100	Add to list Remove
470001400	FLOAT SWITCH ASSY	WM-0460-22WM-1100	Add to list Remove
470002400	ASSY FLOAT SUB	WM-1100	Add to list Remove
484000300	LED LAMP SUB ASSY	WM-1100	Add to list Remove
604002100	WATER TROUGH	WM-1100	Add to list Remove
605001800	STRAINER	IM-1100 WM-1100	Add to list Remove
635001900	WATER CURTAIN	WM-1100	Add to list Remove
640009100	AIR FILTER	WM-1100	Add to list Remove
655009200	SENSOR ICE	WM-1100	Add to list Remove
656001900	GASKET UP DOWN	WM-1100	Add to list Remove
656004000	GASKET LEFT	WM-1100	Add to list Remove
656004100	GASKET RIGHT	WM-1100	Add to list Remove
659010000	START CAPACITOR	WM-1100	Add to list Remove
659011000	RUN CAPACITOR	WM-1100	Add to list Remove
659018600	START CAPACITOR	WM-0680 WM-1100	Add to list Remove
659018800	RUN CAPACITOR	WM-1100	Add to list Remove
701002900	ASSY SENSOR MAGNET SUB	WM-1100	Add to list Remove
701002910	ASSY SENSOR MAGNET SUB	WM-1100	Add to list Remove
737000300	ASSY FAN MOTOR	WM-1100	Add to list Remove
C00B02000	NUT HEX	ID-H150 ID-H250 IU-0090 WM-0460 WM-0680 WM-1100	Add to list Remove

Cube Ice

Nugget Ice

Flake Ice

Specialty Ice

Slush

Soft Serve

DISCONTINUED | Modular Ice Machine Cuber, Air-Cooled, 1100 Lbs – 60Hz, 115V

WM-1100-AC

Features

Specifications

Filtration

Warranty

Resources

Parts

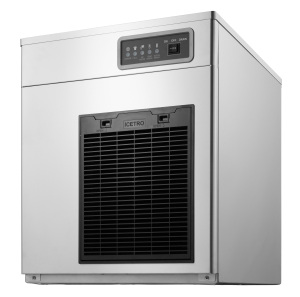

IM-0770-AN

Modular Ice Machine, Nugget Ice, Air-Cooled, 770 Lbs., 22-Inch Width

IM-0770-AF

Modular Ice Machine, Flake Ice, Air-Cooled, 770 Lbs., 22-Inch Width

WC-0070-AB

DISCONTINUED | Undercounter Ice Machine – 60Hz, 115V

WC-0070-AB

DISCONTINUED | Undercounter Ice Machine Cuber, 70 Lbs. – 60Hz, 115V

ID-0160-AN

Nugget Ice And Water Dispenser, 150 lbs., 5.3 lbs. Storage

ID-H150-22

Hotel Cube Dispenser, 150 lbs. Storage, 22-Inch Width

ID-H250-30

Hotel Cube Dispenser, 250 lbs. Storage, 30-Inch Width

WU-0100-AC

Undercounter Ice Machine, Full Cube, Air-Cooled, 105 Lbs, 27 Lbs Storage

IU-0070-OU

Undercounter Ice Machine, Gourmet Cube, 70 Lbs., 26 Lbs. Storage

IU-0090-ANP

Undercounter Ice Machine, Nugget Ice, 90 Lbs., 24.3 Lbs. Storage

IU-0090-AN

Undercounter Ice Machine, Nugget Ice, 90 Lbs., 24.3 Lbs. Storage

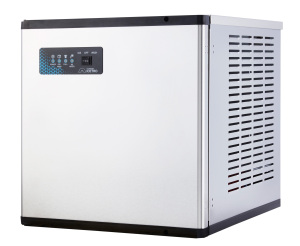

WM-0460-WC-22

DISCONTINUED | Modular Ice Machine, Full Cuber, Water-Cooled, 460 Lbs, 22-Inch – 60Hz, 115V

WM-0460-AH-22

DISCONTINUED | Modular Ice Machine, Full Cuber, Air-Cooled, 460 Lbs, 22-Inch – 60Hz, 115V

WM-0460-AH

DISCONTINUED | Modular Ice Machine, Full Cuber, Air-Cooled, 460 Lbs – 60Hz, 115V

WM-0460-AC-22

DISCONTINUED | Modular Ice Machine, Full Cuber, Air-Cooled, 460 Lbs, 22-Inch – 60Hz, 115V

WM-0460-AC

DISCONTINUED | Modular Ice Machine, Full Cuber, Air-Cooled, 460 Lbs – 60Hz, 115V

WM-0680-WH

DISCONTINUED | Modular Ice Machine, Full Cuber, Water-Cooled, 680 Lbs – 60Hz, 115V

WM-0680-WC

DISCONTINUED | Modular Ice Machine, Full Cuber, Water-Cooled, 680 Lbs – 60Hz, 115V

WM-0680-AH

DISCONTINUED | Modular Ice Machine, Full Cuber, Air-Cooled, 680 Lbs – 60Hz, 115V

WM-0680-AC

DISCONTINUED | Modular Ice Machine, Full Cuber, Air-Cooled, 680 Lbs – 60Hz, 115V

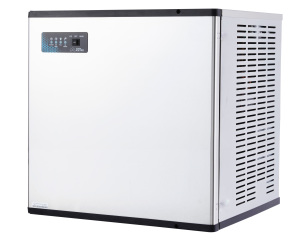

WM-1100-AC

DISCONTINUED | Modular Ice Machine Cuber, Air-Cooled, 1100 Lbs – 60Hz, 115V

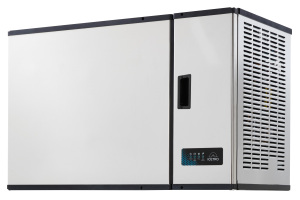

IM-1700-WH

Modular Ice Machine, Half Cube, Water-Cooled, 1700 Lbs., 48-Inch Width

IM-1700-RH

Modular Ice Machine, Half Cube, Remote-Cooled, 1700 Lbs., 48-Inch Width

IM-1700-WC

Modular Ice Machine, Full Cube, Water-Cooled, 1700 Lbs., 48-Inch Width

IM-1700-RC

Modular Ice Machine, Full Cube, Remote-Cooled, 1700 Lbs., 48-Inch Width

IM-1700-AH

Modular Ice Machine, Half Cube, Air-Cooled, 1700 Lbs., 48-Inch Width

IM-1700-AC

Modular Ice Machine, Full Cube, Air-Cooled, 1700 Lbs., 48-Inch Width

IM-2000-WH

Modular Ice Machine, Half Cube, Water-Cooled, 2000 Lbs., 48-Inch Width

IM-2000-RH

Modular Ice Machine, Half Cube, Remote-Cooled, 2000 Lbs., 48-Inch Width

IM-2000-WC

Modular Ice Machine, Full Cube, Water-Cooled, 2000 Lbs., 48-Inch Width

IM-2000-RC

Modular Ice Machine, Full Cube, Remote-Cooled, 2000 Lbs., 48-Inch Width

IM-2000-AH

Modular Ice Machine, Half Cube, Air-Cooled, 2000 Lbs., 48-Inch Width

IM-2000-AC

Modular Ice Machine, Full Cube, Air-Cooled, 2000 Lbs., 48-Inch Width
