Undercounter Ice Machine, Half Cube, Air-Cooled, 220 Lbs., 77 Lbs. Storage
IU-0220-AH
Undercounter Ice Maker with Bin, cube-syle, air-cooled, self-contained condenser, production capacity up to 202 lbs/24 hr at 70°/50° (150 lbs at 90°/70°), 77 lbs storage capacity, control board diagnostics, stainless steel exterior, half-size cubes, 115v/60/1-ph, cord with NEMA 5-15P, CE, cETLus, ETL-Sanitation
Features
- Air-cooled, undercounter, half cube
- Up to 202 lbs of ice production per 24 hrs
- Stainless steel exterior panels
- Front ventilation in/out air flow and space saving
- 77 lbs ice storage
- High density urethane insulation reduce ice melting in bin
- Forward sliding removable bin cover for easy maintenance (need to remove side screws first)
- Control board diagnostics
- Includes ice scoop
- 115V/60Hz/1ph with power cord
Specifications
- Ice Type: Cube
- Condenser Type: Air Cooled

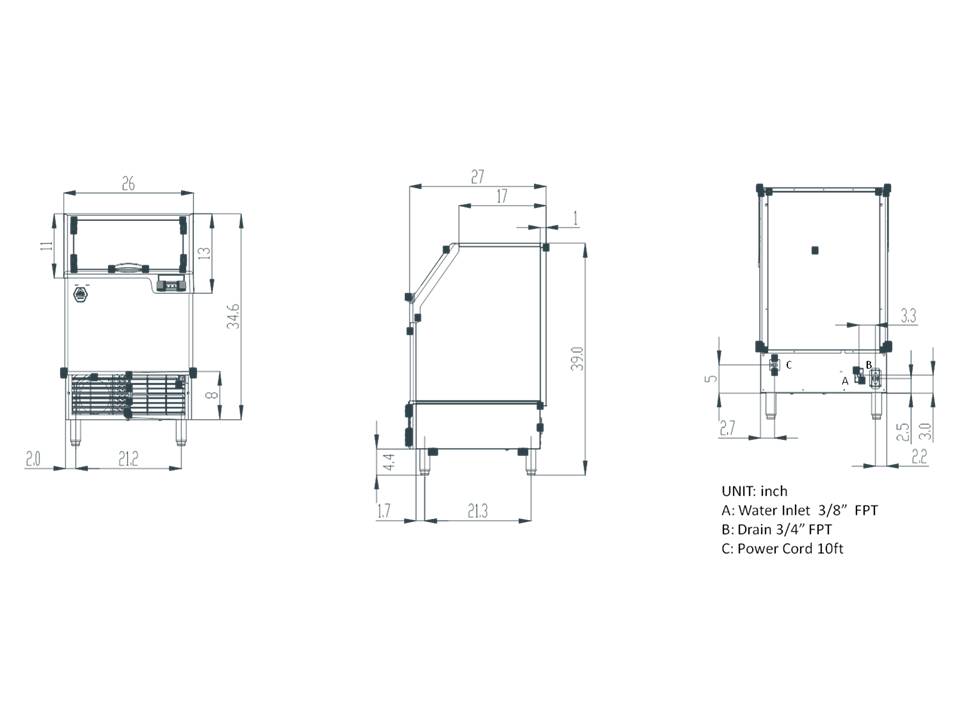

- Dimensions: 26.00 INCH" width x 39.00 INCH" height x 28.00 INCH" depth
- Product Weight, Ship Weight: 154lbs, 183lbs
- Electrical: 115V/1PH
Filtration
Icetro America always recommends using a dedicated filtration system for its ice machines. However, using the IcePro filter with Citryne™ and registering at icetrowaterproducts.com/registration will add one (1) year of warranty coverage.
Warranty
3 Years Parts and Labor
5 Years Evaporator Parts and Labor; 5 Years Compressor Parts Only
Resources
Icetro IU 0170 0220 UndercounterIceMachine SpecSheet Download
Icetro IU 0170 220 UnderCounterIceMachine UserManual 1 Download
2025 Ice Machine Catalog, 12 pp Download
Icetro 2025 Ice Machine Catalog (4 pp) Download
Icetro Ice Machines Features and Benefits Download
Icetro Ice and Slush Trifold Download
Icetro Maquinas de Hielo Catalog, 4 pg, ESP Download
Icetro Tech Handbook Undercounter Download
Icetro IU0220 Undercounter PartsList 1 Download
Icetro IU 0170 0220 AC AH VE Download
Revit-QF Icetro IU 0170 0220 AC AH Download
Icetro IU 0170 0220 AC AH VP Download
Icetro IU 0170 0220 AC AH VS Download
